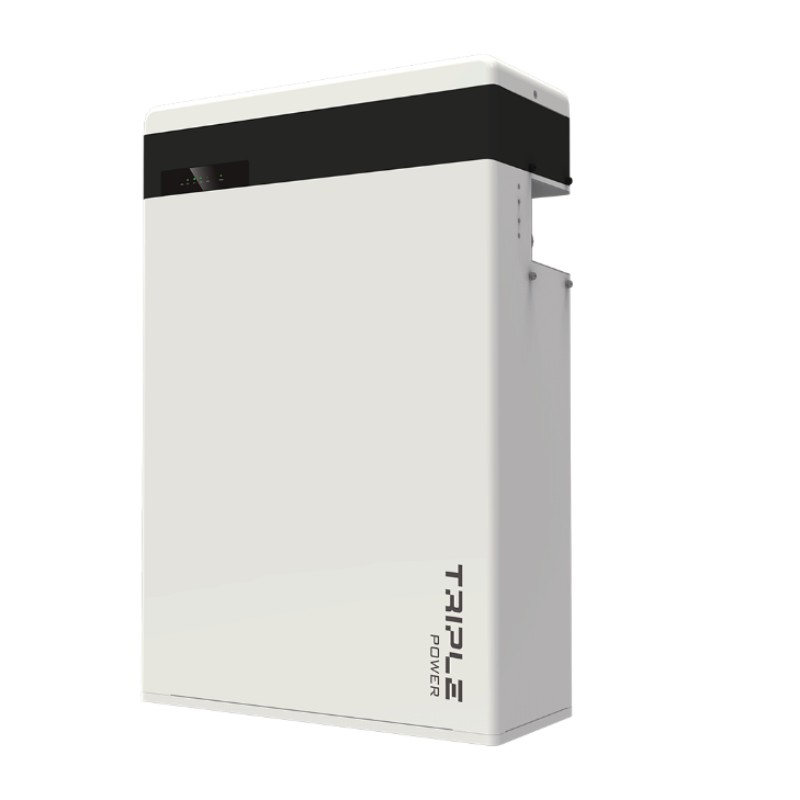

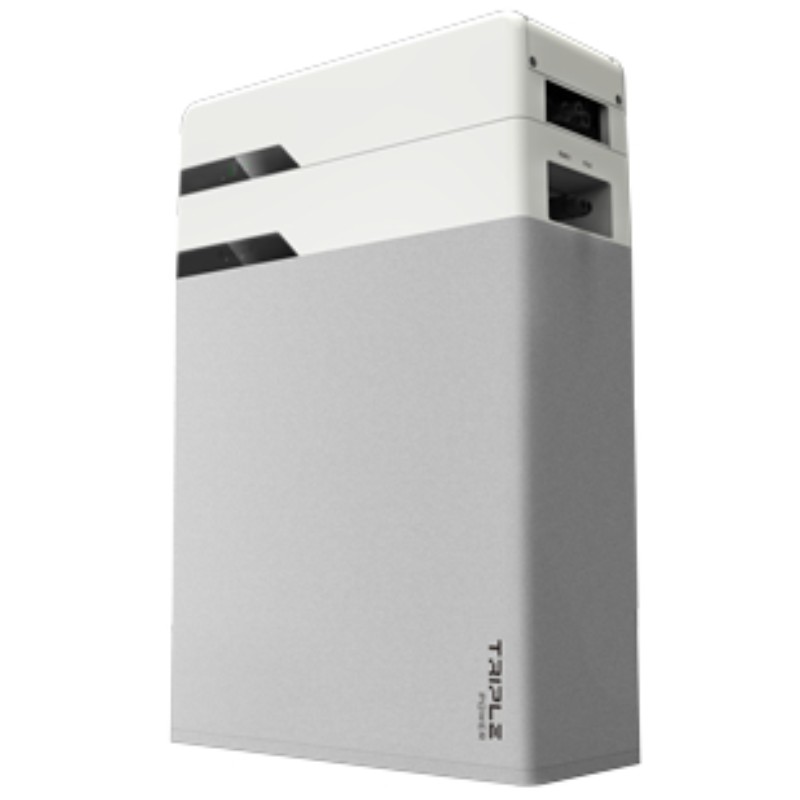

Designed and manufactured in partnership with SolaX, Triple Power are offering a NEW 5.8kWh model that can be installed in series with up to 4 batteries enabling 23.2kWh of storage. The new Triple Power encompasses the very latest in LFP technology which ensures much safer installations with wider temperature tolerances. With a 10-year warranty and 90% depth of discharge, the new Triple Power battery is a flexible, practical, high-performance energy storage solution.
In order to scale the system and have it operating effectively a Master console with battery management system (BMS) is connected to Slave consoles that it controls. Please ensure that all systems bought have a Master console for effective compatibility with inverters.
Features
- Nominal capacity: 5.8 kWh
- Usable capacity: 5.2 kWh
- Depth of discharge (DoD): 90%
- Max power: 4 kW
- Round trip efficiency: 95%
- Operating voltage range: 100 – 131V
- Max Charge/discharge current: 35A
- Cycles: >6,000
- Dimensions: 474 x 193 x 708 mm
- Weight: 72.2 kg
- IP55 protection grade
- Warranty of 10 years
